Barebow Spacer for Yost Tab

Description

Included with the order:

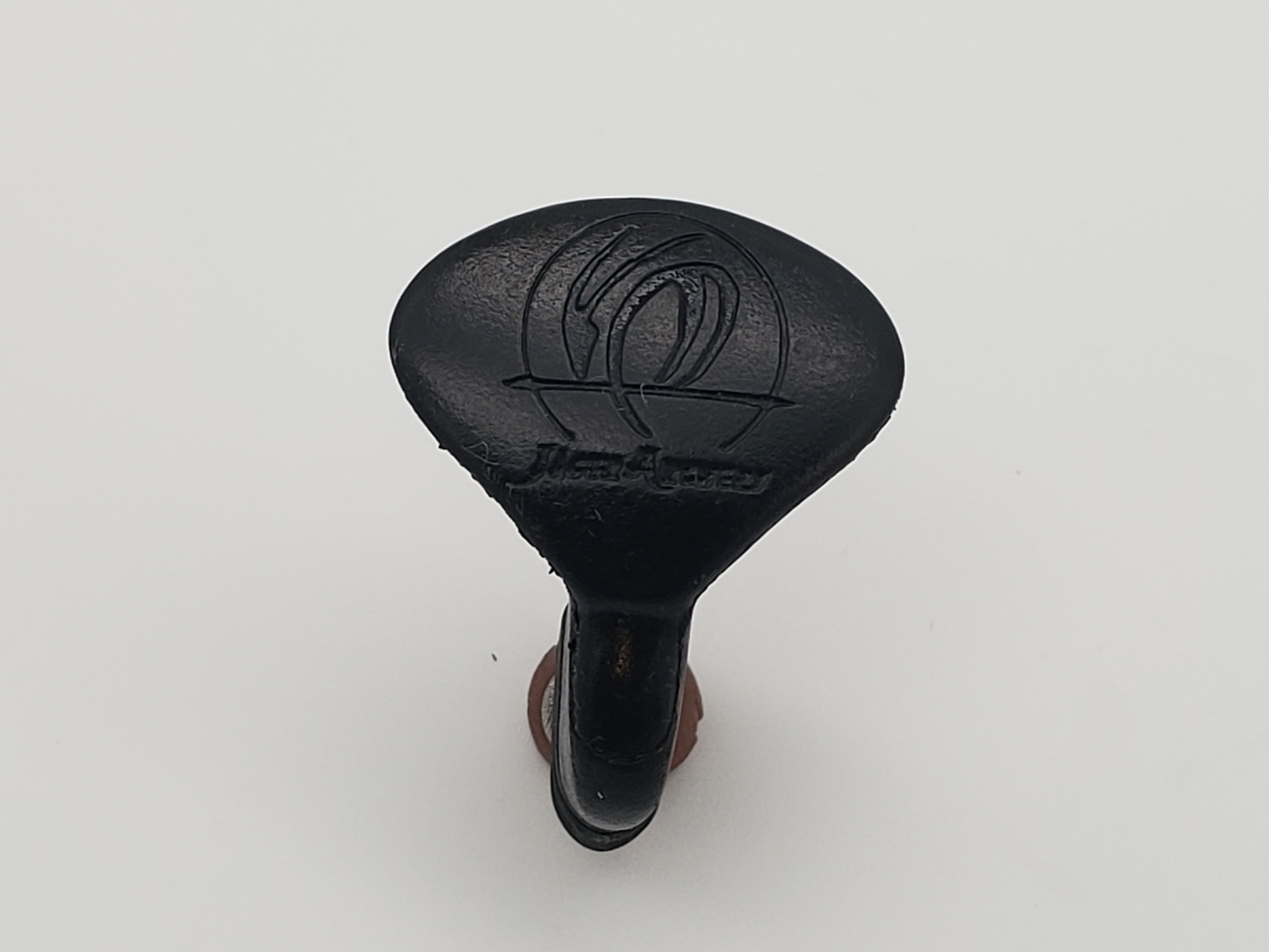

• 1 ea. Finger Spacer (spacer has 1 ea 6-32 button head screw and 1 ea 4-40 set screw)
• 2 ea. Sizing Shims (for finger size adjustment)
• 1 ea. Elastic Strip
• 2 ea. Threaded Aluminum Bushings (Same size)
• 1 ea. Aluminum Flathead screw

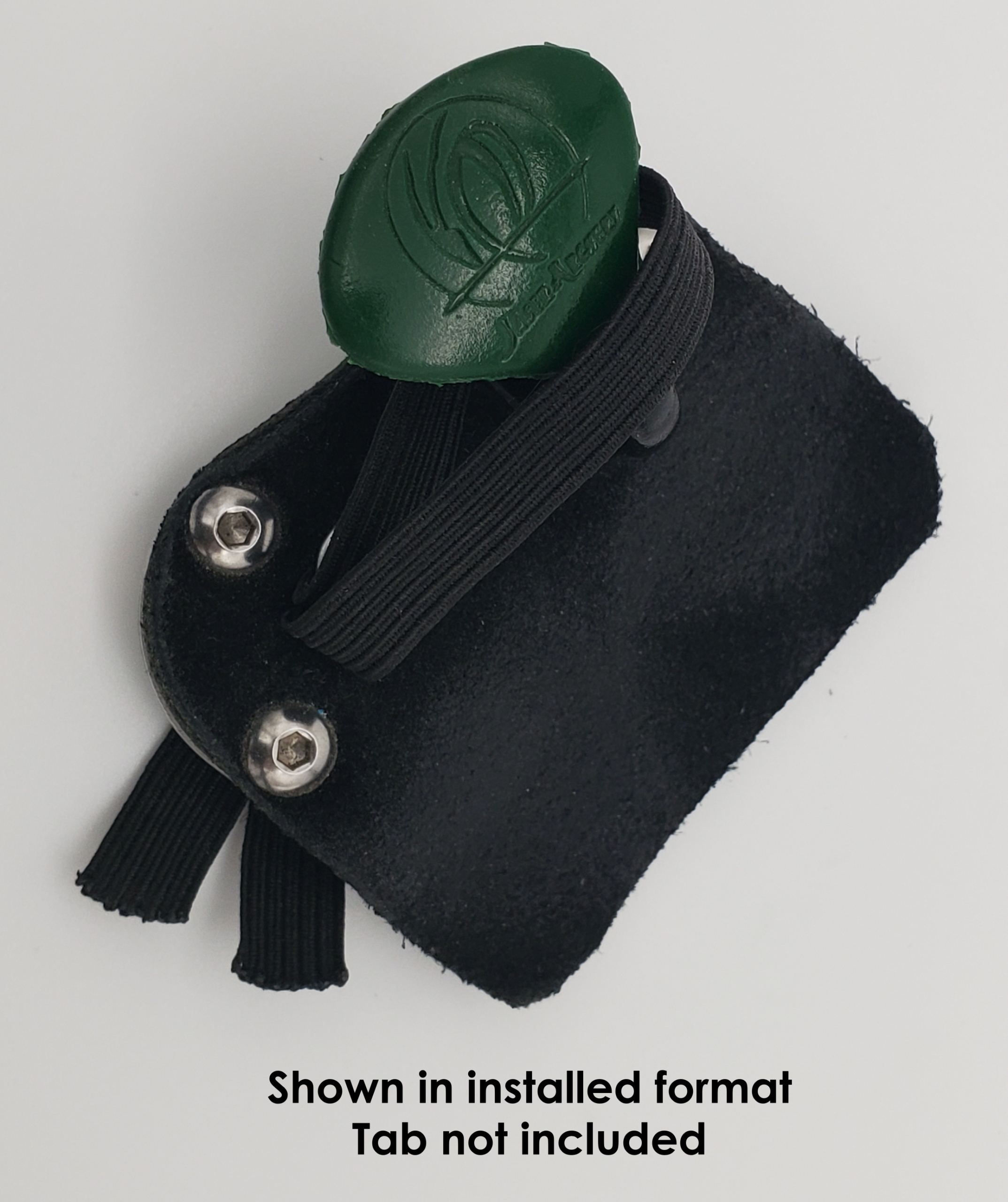

Assembly:

Spacer:

First, Remove old elastic cord and the screw next to the upper cord strap hole. Throw away.

Next, Remove 6-32 screw from finger spacer.

Next, Determine how many sizing shims to use.(None for thin fingers, 1 for med, and 2 for thick)

Next, Adjust the set screw to the number of shims used (Set screw barely poke out bottom)

Next, Set the prepared spacer aside

Next, Pick up the tab and insert one of the aluminum bushings into the upper cord hole from the

plate side

Next, Push the 6-32 screw through the hole in the bushing from the plate side.

Next, Pick up prepared spacer and thread 6-32 screw into hole it was removed from in 2nd step.

Next, Tighten screw until it fits loosely against the face. Align the spacer and tighten firmly.

Strapping (optional)

First, fold the piece of included elastic band in half and thread it through lower hole.(loop up)

Next, Push 2nd Aluminum Bushing through tab from leather side to pinch the strap in place.

Next, Thread Aluminum Flathead Screw into the bushing from the opposite side. Leave loose.

Next, Gage how much loop you will want when stretching the loop over the spacer top.

Next, Tighten Aluminum Flathead Screw

Next, Go set new PB Scores and be admired by friends.
